Customized Pre Engineered Building H Section Steel Warehouse Workshop
Product Description
Steel structure pre-engineered buildings are construction systems that involve the design, fabrication, and assembly of building components off-site. These components, primarily made of steel, are pre-engineered and precision manufactured to fit together seamlessly on-site. Steel structure pre-engineered buildings offer advantages such as cost-effectiveness, durability, customization, and faster construction compared to traditional building methods. They are versatile and can be used for various applications, including industrial, commercial, and agricultural structures. Steel structure pre-engineered buildings are known for their strength, flexibility, and efficient construction process, making them a popular choice in the construction industry.
Product Parameters
| Items |
Specification |
| Main Steel Frame |
Column: Q235,Q355B Welded H Section Steel
Beam: Q235,Q355B Welded H Section Steel
|
| Secondary Frame |
Purlin: Q235,Q355B C and Z purlin
Knee brace: Q235B Angle Steel
Tie rod: Q235B Circular Steel Pipe
Brace: Q235B Round Bar
Vertical&Horizontal support: Q235B Angle Steel, Round Bar or Steel Pipe
|
| Cladding system |
Roof panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
|
| Accessories |
Window: Aluminium Alloy Window / PVC Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door
Rainspout: PVC
|
| Wind Resistance Grade |
According to local climate |
| Earthquake-resistance |
According to local grade |
| Structure Usage |
Up to 50 years |
| Finishing Options |
Vast array of colors and type available |
| Paint Options |
Alkyd painting, two primary painting, two finish painting / Galvanized |
Customization
We excel in offering extensive customization options for steel structure pre-engineered buildings. With a focus on meeting the unique needs of each client, our team of experienced professionals works closely with you to bring your vision to life. We provide a comprehensive range of customization possibilities, including design, layout, materials, and finishes.
-
Size and Layout
We can customize the dimensions and layout of the building to fit your specific space and operational needs, whether it's large industrial or small commercial structure.
-
Material Selection
We offer a variety of steel options, allowing you to choose the grade and type of steel that best suits your project, considering factors such as strength, durability, and cost-effectiveness.
-
Roof and Wall Selection
You have the freedom to select the exterior finishes and cladding materials, such as EPS sandwich panel, glass fiber sandwich panel, rock wool sandwich panel, Pu sandwich panel, steel sheet, to achieve the desired appearance and enhance the building's performance.
-
Interior Features
From partition walls and mezzanines to specialized flooring or ventilation systems, we can incorporate various interior features to meet your specific functional requirements.
-
Doors and Windows
We offer customization options for doors, windows, and other openings, allowing you to choose the style, size, and functionality that suits your needs, such as sliding doors, rolling doors, etc.
Design and Quote
What will be need to get a price of pre-engineered buildings?
- The local site Max. Wind speed
- Snow load if there is snow in local
- Size of the building
- Drawing or more specification if have
Application
-
Industrial Buildings
The large clear-span design allows for efficient utilization of space, providing flexibility for storage, logistics, and manufacturing operations, suitable for warehouse, workshop, factory building, etc.
-
Commercial Buildings
The pre-engineered buildings offer a quick construction process, customizable designs, and open floor layouts to accommodate diverse commercial needs, such as offices, and shopping malls, etc.
-
Agricultural Buildings
The steel structure provides durability and protection for agricultural equipment, crops, and livestock, suitable for barns, livestock shed, poultry house, etc.
-
Aircraft Hangars
The large clear spans and high ceilings, enabling easy storage and maintenance of aircraft and related equipment.
-
Educational Buildings
The pre-engineered buildings offer quick construction, cost-effectiveness, and the ability to accommodate various educational facilities, utilized for schools, colleges, etc.
Project Introduction
- The warehouse is 180.48 meters long, 57.48 meters wide, and is surrounded by 14.8 meters of parapet wall. The maintenance part uses 0.5mmV760 outer board +100mm glass silk wadded (volume weight 16kg) +0.4mmV960 inner board, and uses the way of anti-hanging board, the inner board is installed in the lower end of the purlin, so that the internal purlin is not visible. To meet the needs of beauty.
- In addition, there are two floors in the local area, using our 688 floor bearing plate and stair handrails and other products, as well as unfinished glass curtain wall, the warehouse wall above the use of lighting, saving costs, below the window, downspout arranged in the warehouse.
- The warehouse is a three-span structure, while each span is equipped with two 10-ton driving equipment. The overall steel volume is about 650 tons.
Installation
We provide comprehensive steel structure installation guidance tailored to your needs. Our services include sending construction drawings, installation videos, and online instructions. We can also dispatch our skilled construction personnel to your country for on-site installation support.
The installation process can be divided into the following steps:
- Foudation construction: Pre-embedded anchor bolts, detail need to according to the foundation construction drawing

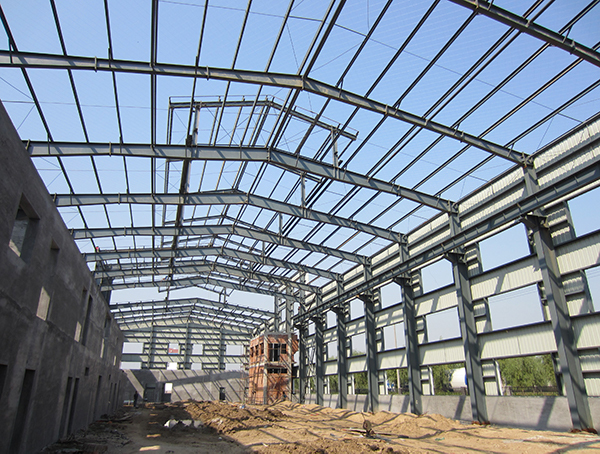

- Column installation: One worker commands truck crane how to move, 3 ~ 4 workers cooperate with crane to install the steel column, put column to anchor bolt location
- Beam installation: After completing the installation of adjacent two steel column, then main beam begin to install
- Installing roof & wall purlin: The roof and wall purlin will be installed after finishing column and beam. Bolting the purlin on the main structure
- Fixing wall and roof sheet: To fix the wall sheet on wall purlin by self-tapping screw; then fix the roof sheet
- Fixing the cover: To install the cover on the corner, eave, window and door opening
- Install PVC windows and sandwich panel slidng doors
About Us
Qingdao Xinguangzheng Steel Structure Co., Ltd. was founded in 2002 and is located in Pingdu City, Qingdao, Shandong Province. It covers an area of over 200 mu (approx. 13.3 hectares), employs more than 1,000 people, and its products are sold in over 100 countries and regions worldwide, serving over 10,000 customers.The company was listed on the National Equities Exchange and Quotations (NEEQ) in 2015.
Xinguangzheng consistently upholds to its vision of "becoming a global leader in integrated services for steel structure applications and equipment" and making staff successful, giving clients happiness, and ensuring the enterprise of lasting vitality" continuously advancing the high-quality development of the enterprise.
FAQ
You are manufacture factory or trading company?
We are manufacture factory. You are welcomed to visit us at any time. In the workshop,it has a complete advanced equipment system for making steel structures and panels. So we can make sure the good quality and also the competitive price.
How about your quality control?
Our products have passed CE EN1090,ISO9001,ISO14001and ISO45001.
Can you offer design service?

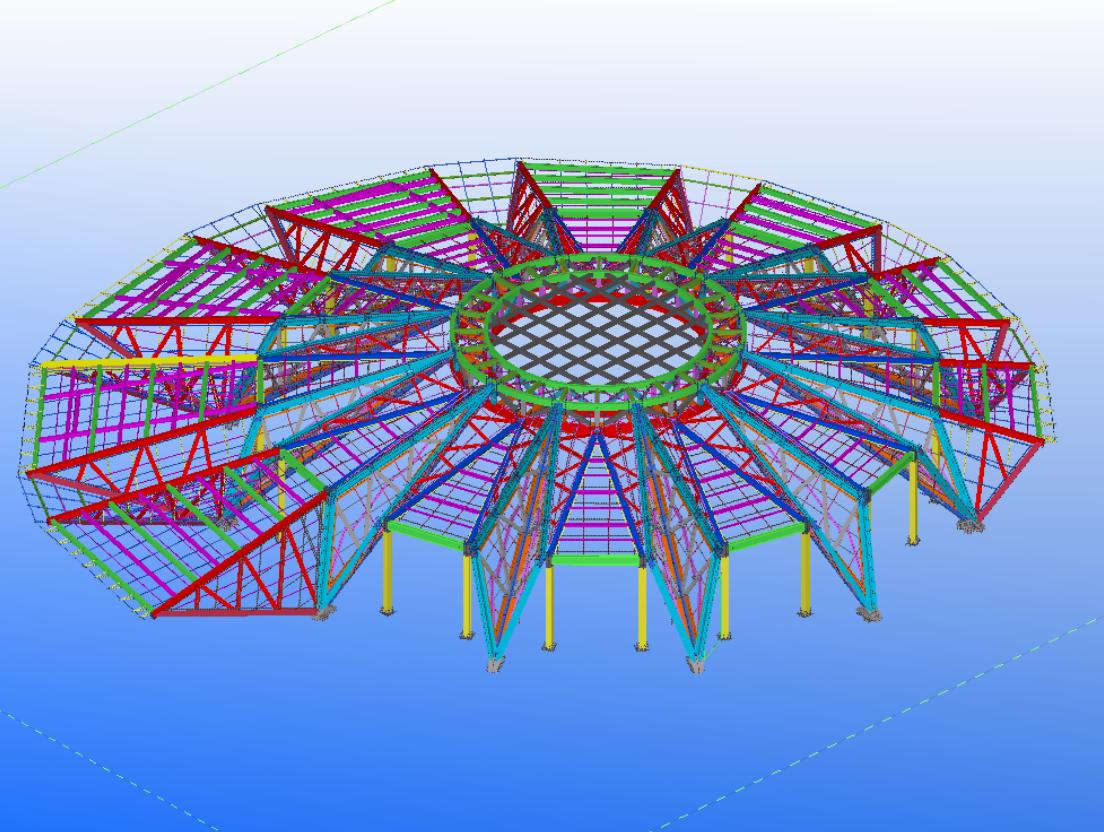

Yes,we have an engineer team and can design for you according to your requirements.Architectural drawing,structure diagram,processing detail drawing and installation drawing will be made and let you confirm in different time of the project.
What's the delivery time?
The delivery time depends on the size and quantity of building.Generally within 60 days after receiving the balance payment.And partial shipment is allowed for big order.
Do you offer service for installation?
We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We also could send the engineer to your local to help you if need.
